Electrotatic Demos

Wooden stand for standing on when using the Van de Graaff generator. Rabbit fur, plastic rods, and glass rods for generating/storing charge.

Van de Graff

Useful for several electrostatic demonstrations. Rice crispies or Styrofoam peanuts placed on the dome make a fountain from the electrostatic repulsion. Large sparks can be made with the discharge wand. A florescence light bulb tube can be glow if touched to the dome.

setup time: < 10 minutes

Faraday Ice Pail

Demonstration of electrostatic shielding inside of a conductor.

setup time: < 10 minutes

Ohm's Law

Ohm's law demonstration

setup time: < 5 minutes

Capacitor Discharge

Discharge of a large capacitor. Typically discharged with the large (3 ft) screwdriver. Note: This capacitor stores significant energy and is dangerous. Replace aligator clips and shorting wire between the terminals when finished.

setup time: < 10 minutes

Magnetic Field lines

Iron filings are suspended in a fluid. When a bar magnet is placed in the hole through the center of the cube, the magnetic field lines become visible. There is also a flat version of which works well on an overhead projector. Far left picture illustrates sheets of magnetic material that allow the visualization of field lines.

setup time: < 5 minutes

Magnetic Field lines 2

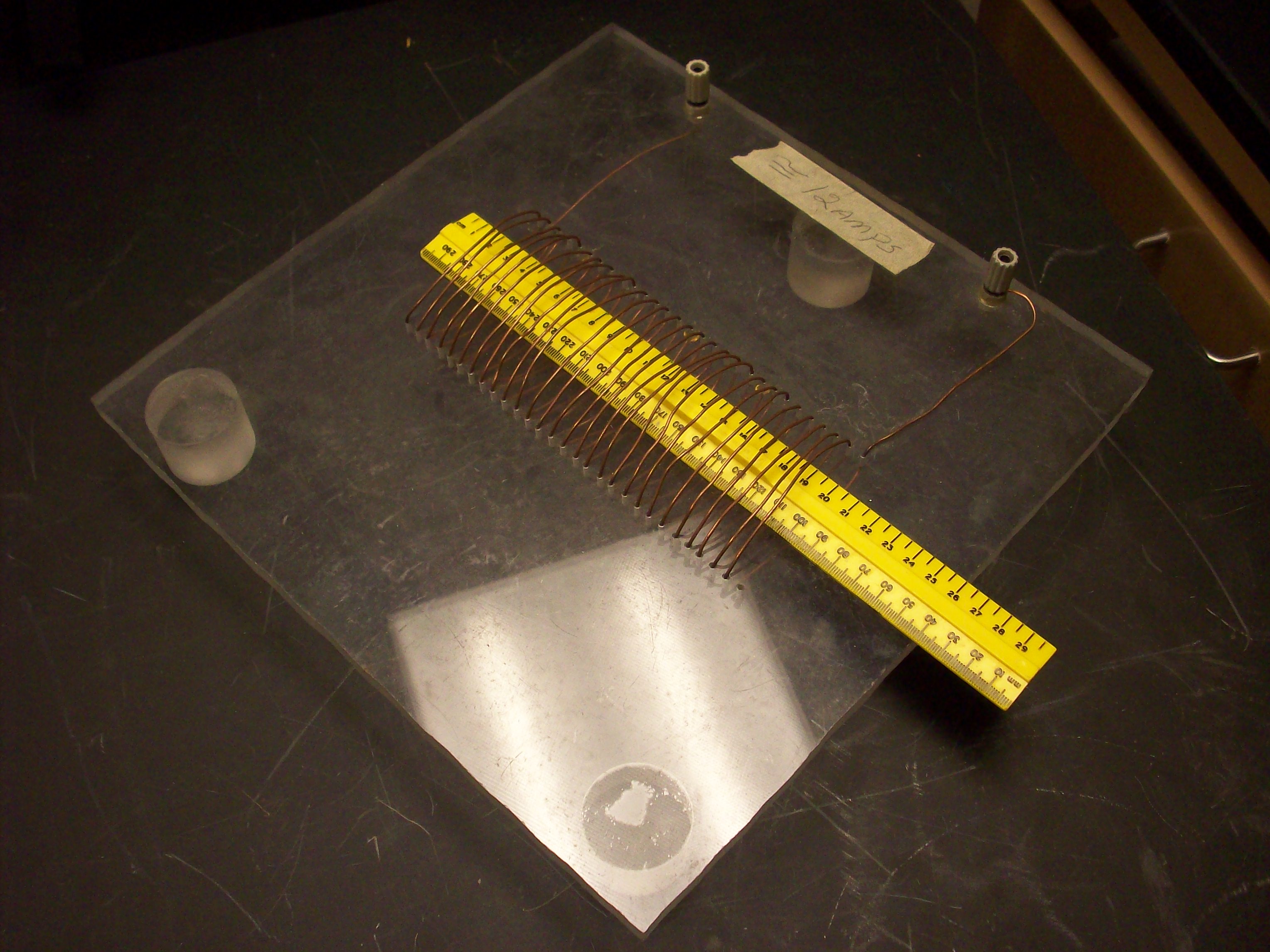

Sprinkle iron filings on the plexiglass. Run current through the wires and the filings will align with the solenoid's field lines.

setup time: < 5 minutes

Jumping Wire

A large current is briefly passed through the wire which is located between the poles of a strong permanent magnet. The current switch is a telegraph 'tap' switch. The current is supplied by a car battery which needs to be charged before use.

setup time: < 10 minutes

Eddy Currents

An insulator, metal ring and metal ring with an small slit through it are swung through the strong magnetic field of a permanent magnet. Eddy currents in the metal ring noticeably change the motion through the magnetic field

setup time: < 5 minutes

Eddy Currents 2

A strong permanent magnet is dropped through a long copper tube. Eddy currents cause the magnet to fall slowly. A copper cylinder dropped through falls quickley. Either dropped through the tube with a slit in it fall at the same speed.

setup time: < 5 minutes

Transformer and Ring Launcher

AC power is applied to a coil in the base of the unit. A removable secondary coil with a bulb lights up when the current is applied. An aluminum loop will launch from the base because of the induced current in the loop. A split loop will not move.

setup time: < 5 minutes

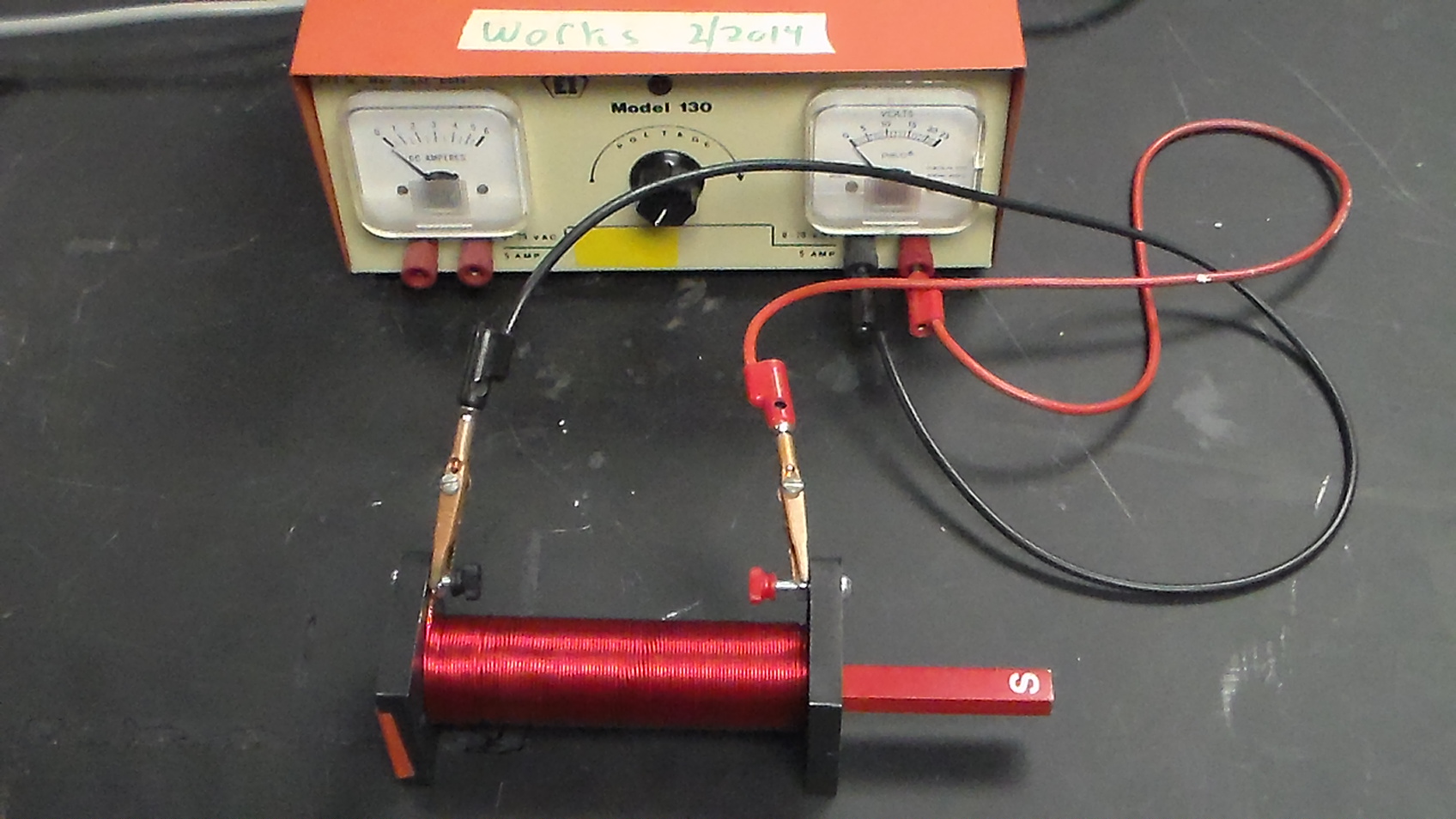

Electromagnet Force on a Permanent Bar Magnet

The solenoid is powered by a current source of up to 6 amps. The bar magnet is pulled into the solenoid when the current is quickly switched on.

setup time: < 5 minutes

Electron Deflection

Use a magnet to deflect the electron beam in the tube. The electron beam is visible on the florescence coating on the inside of the front of the tube.

setup time: < 10 minutes

Electron Rocket

Three arm rocket spins when charged by the Van de Graff

setup time: < 10 minutes

Piezoelectric Sparker

Grasp the handles and flex the rod side to side. Sparks will appear between the two adjustable spikes.

setup time: < 5 minutes

Electroscopes

Touch charged objec to the appropriate top piece (rightmost equipment has a shield which must be removed first) and an indicator inside will move.

Magnetic Induction

Galvanometer measures current produced by the induced voltage when a magnet is moved into and out of a coil of wire.

Hand Crank Generators

LRC Circuit

Required Items:

Series-Parallel Circuit

User configures circuit by changing the arranegment of the metal strips.

Required Items:

Guass Gun


Misc. Avaliable Equipment

Oscilloscope

Assorted cables hang from the demo room wall, various connectors are in the E&M section.

Projector Charge Meter

Touch charged objec to the black circle and the needle will indicate.

Magnets

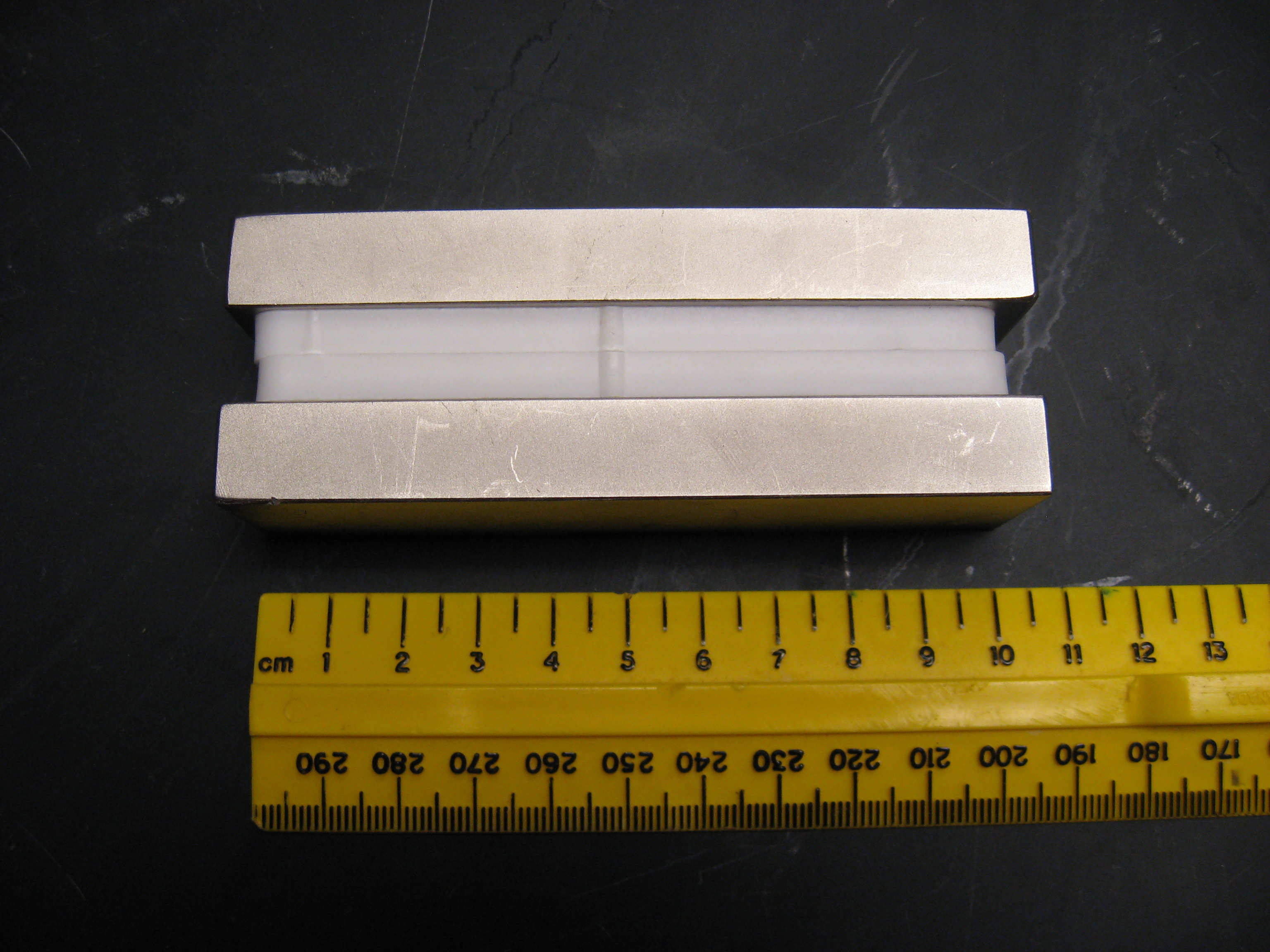

Danger: The large Nd magnets are very strong, and can crush things between them (e.g. fingers).

Light Guides

Coils -- Solenoids

Coils with various connectors (bananna, BNC). Solenoid with iron core.

Assorted Circuit Components

Small breadboard also available.

Small DC Motors

Small DC motors previously powered by AA batteries.

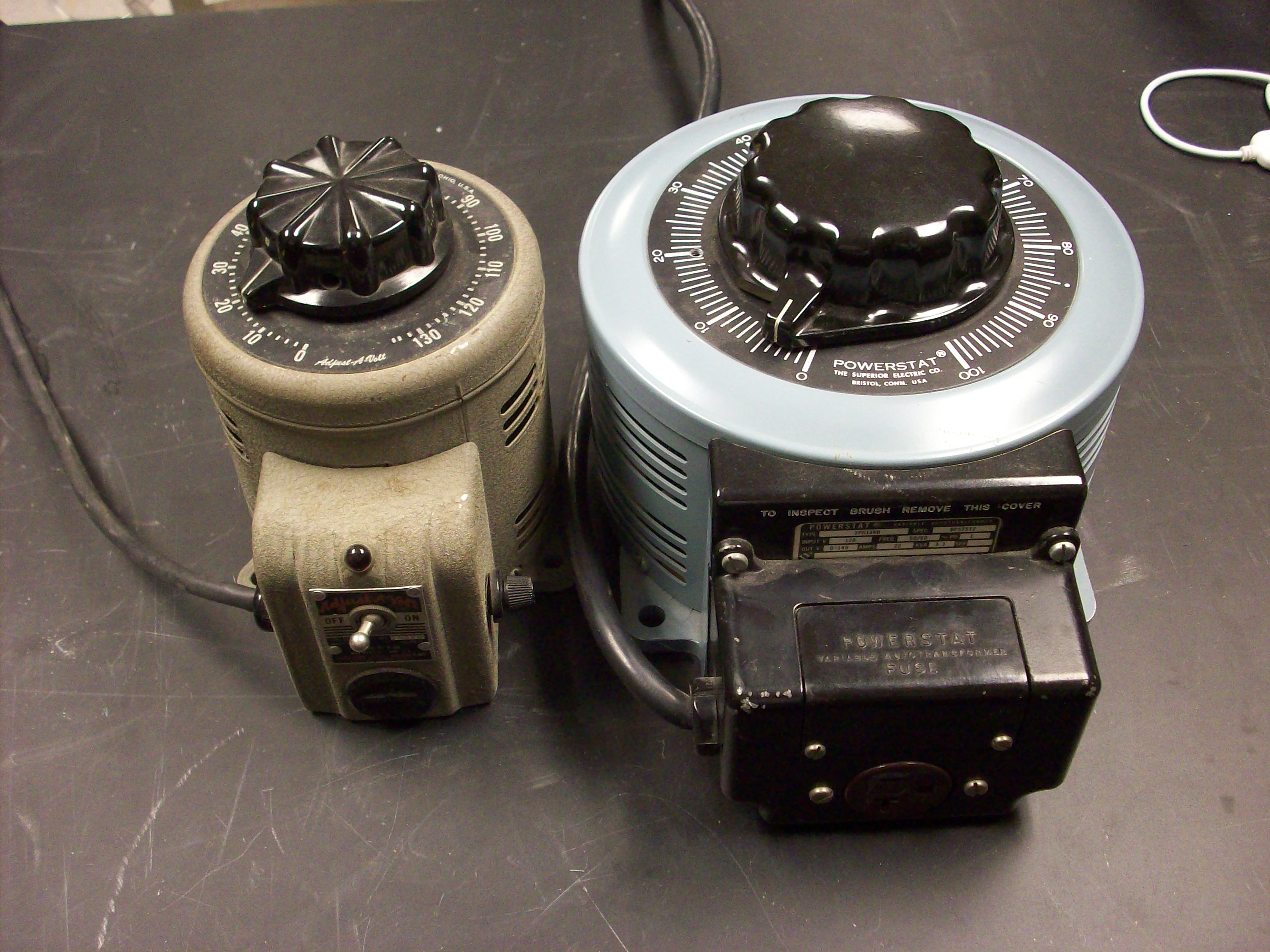

Variable Transformers

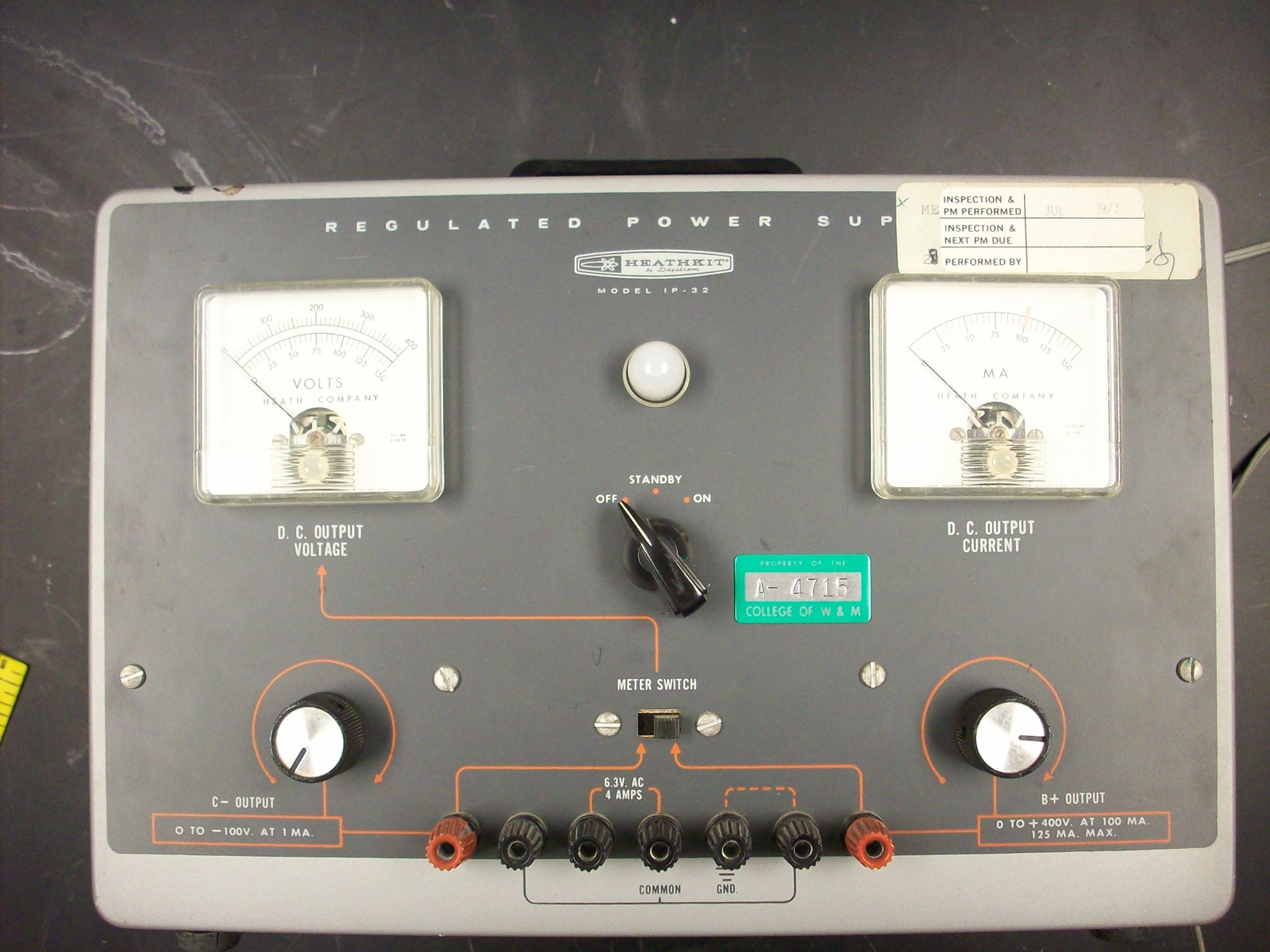

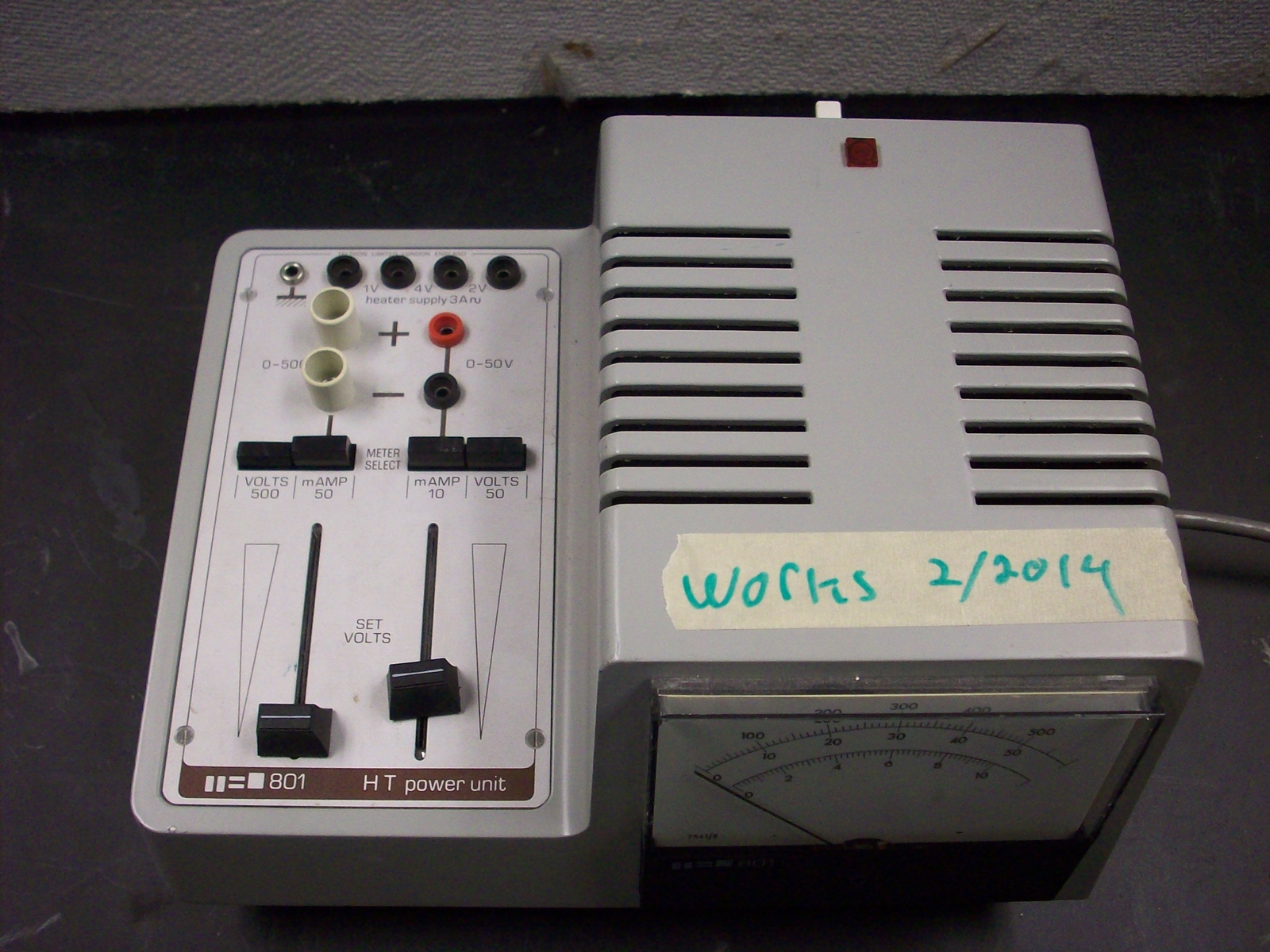

Assorted Power Supplies

Transformers

Coils, each with screw-down or bananna connectors fit into one another to alter the current and voltage of the circuit.

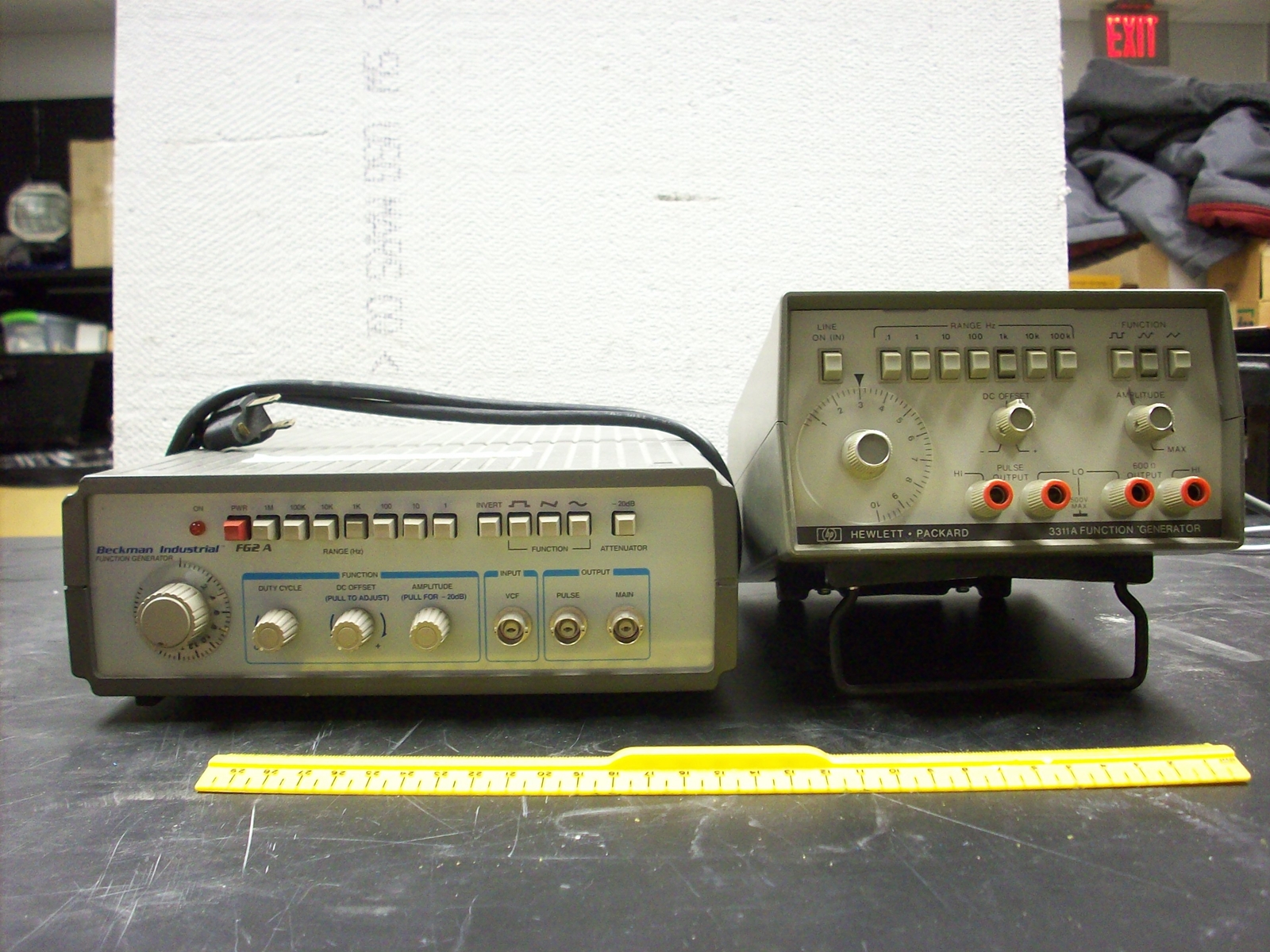

Function Generators

Multi-meters

Various current, voltage, and resistance meters.

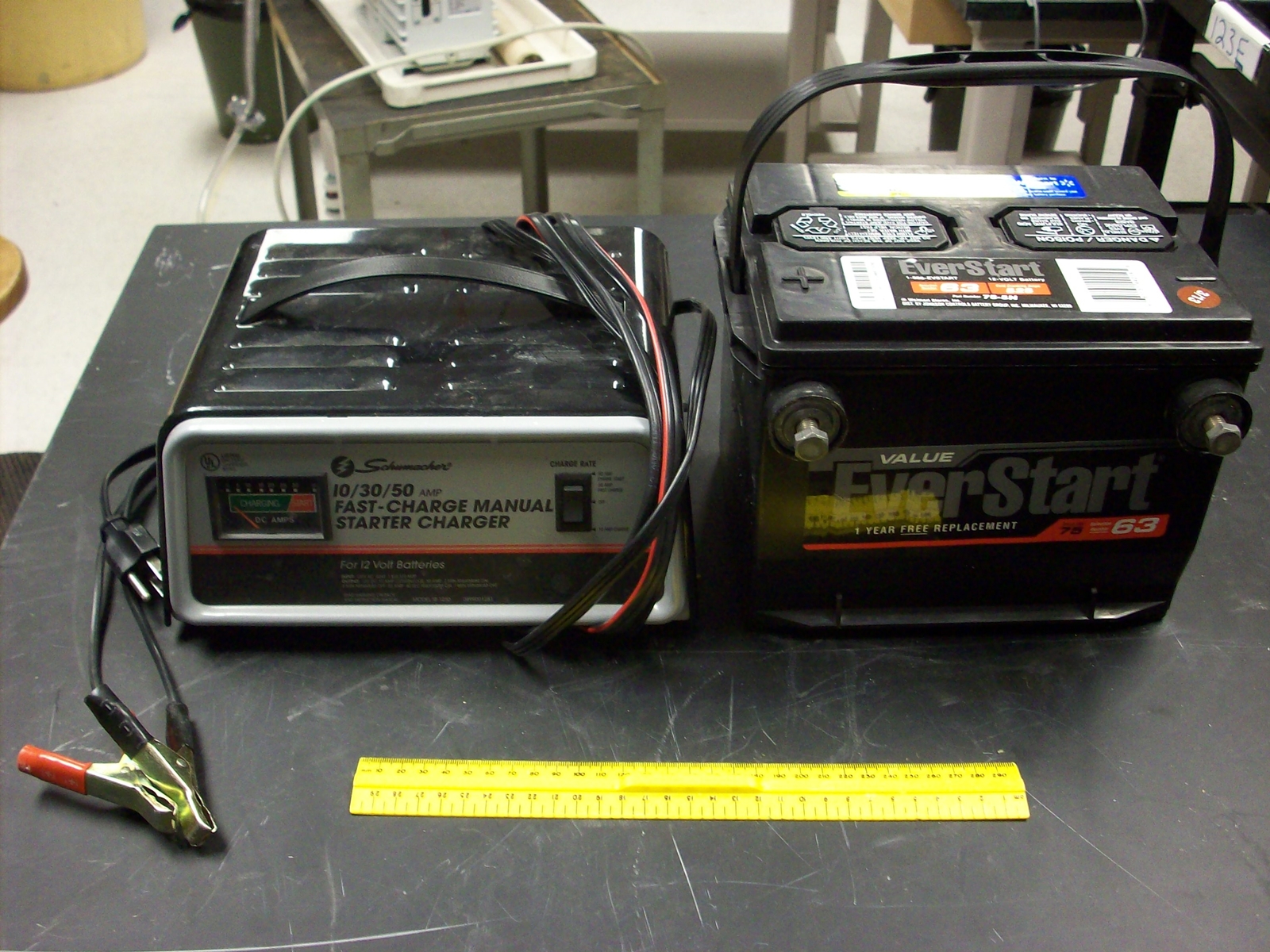

Large Battery and Charger

Variable Resistor (rheostat)

Screw-down terminals. Slide the top to adjust the resistance .
