vise # |
Demonstration Name |
Demonstration Description |
Image Available |

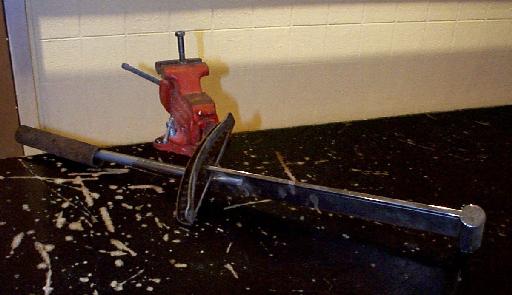

| 1J40.15 | Torque Wrench | A torque wrench is used with a split nut and bolt to demonstrate differing amounts of torque (details). |
|
|
|
Wrenches of Different Lengths | Wrenches of varying lengths are used with a split nut and bolt to demonstrate differing amounts of torque (details). | Yes |
| 1J40.20 | Unbalanced Meter Stick | Weights on a meter stick supported at the center of mass (details). | Yes |
equipment
- torque wrench
- split nut and bolt secured in vise
setup
- 5 minutes to secure vise and adjust split nut
estimated time
- 5-10 minutes
additional instructions
- allow student to use torque wrench to tighten bolt (adjusted to different difficulties using vise to squeeze split nut)
equipment
- different length wrenches
- split nut and bolt secured in vise
setup
- 5 minutes to secure vise and adjust split nut
estimated time
- 5-10 minutes
additional instructions
- allow student to use different length wrenches to tighten bolt at differing tensions
equipment
- meterstick on pivot
- assortment of weights
setup
- <5 minutes
estimated time
- 5-10 minutes
additional instructions
- a variety of wieghts are placed on either end of the meter stick at different legnths to demonstrate torque
